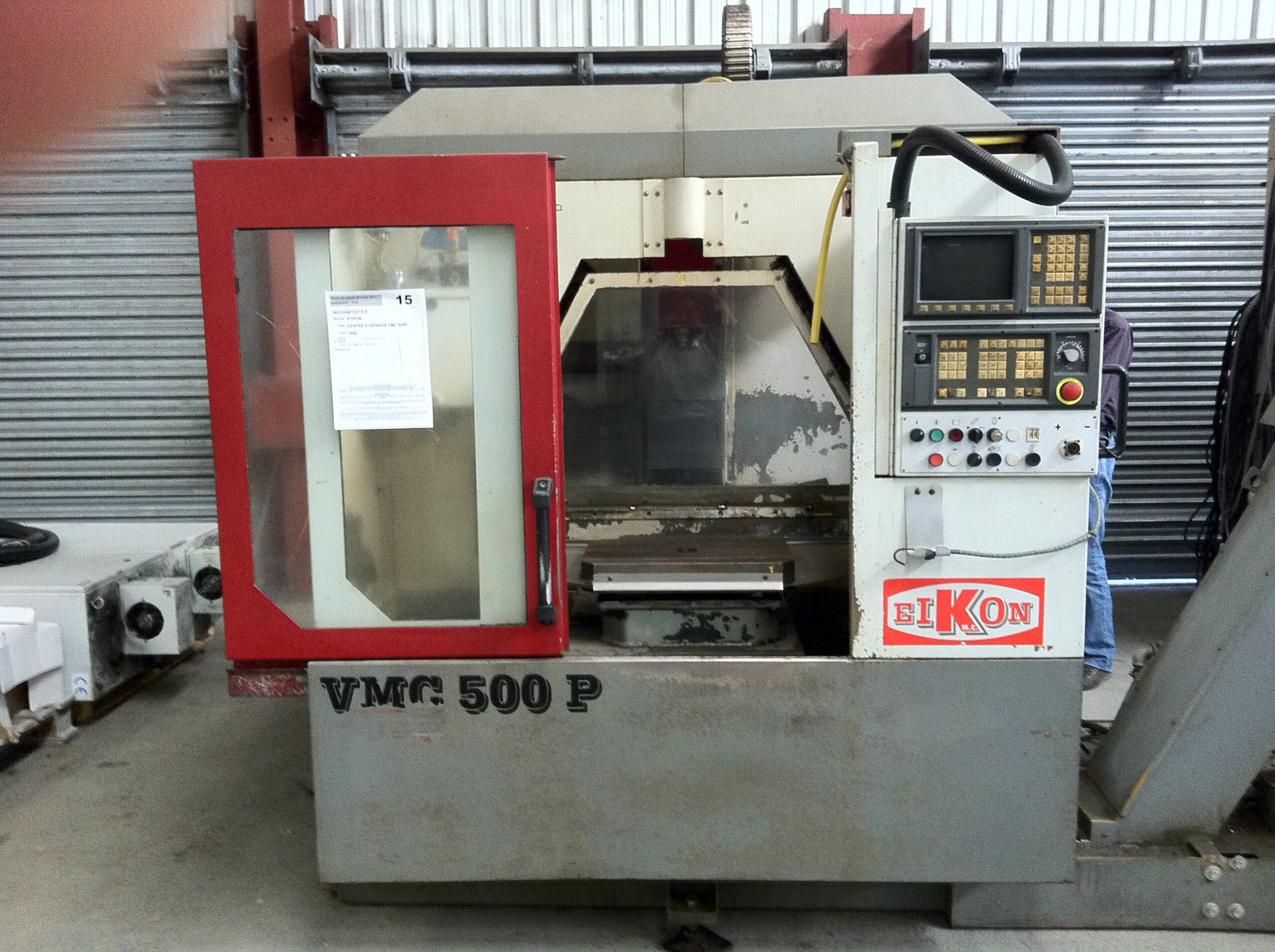

EÏKON VMC 500 P - Used machine
SOLD
| Model | VMC 500P |
| Year | 1998 |
| Longitudinal stroke - X | 500 mm |
| Cross travel - Y | 350 mm |
| Vertical stroke - Z | 400 mm |

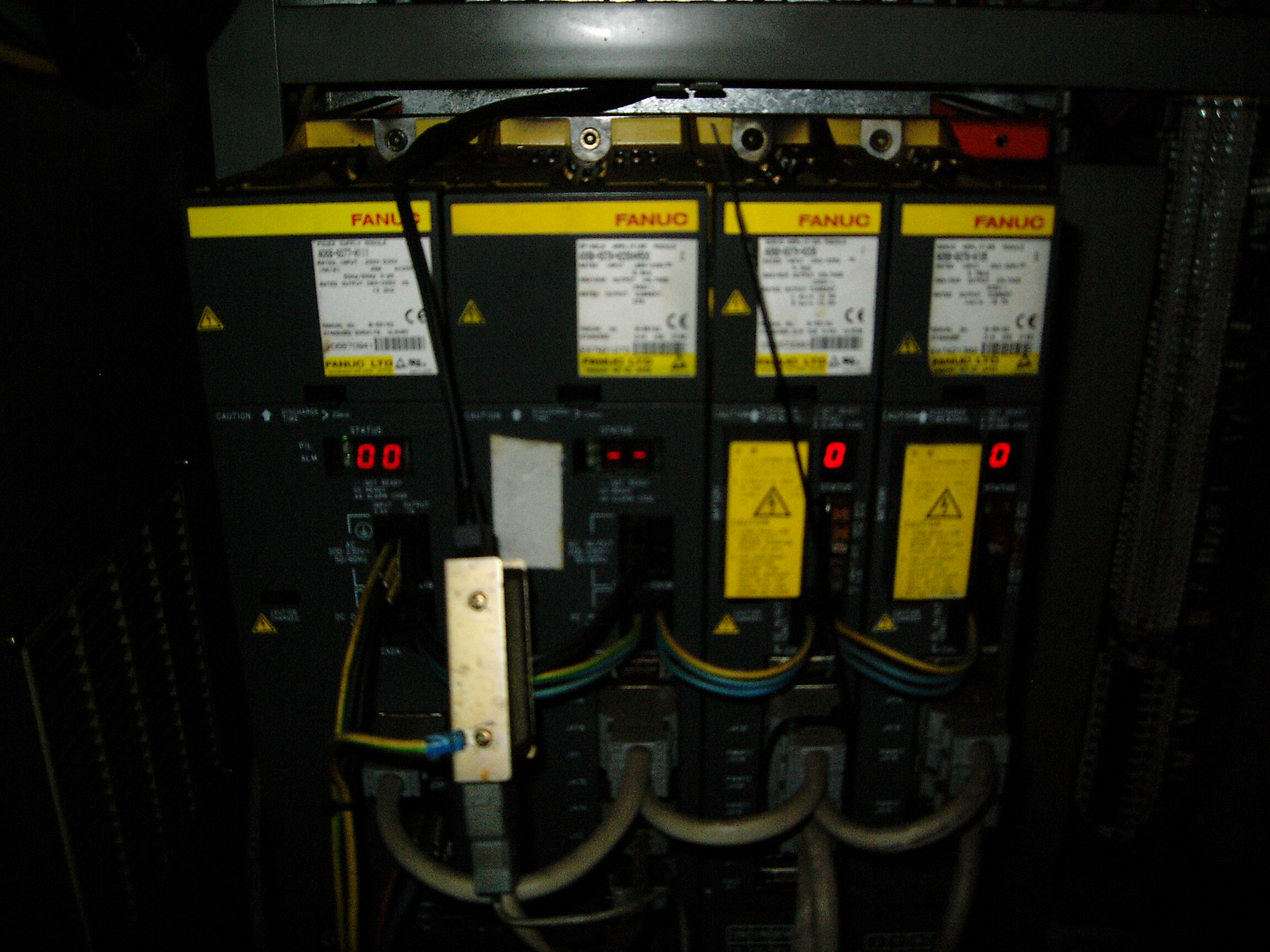

| CNC system | FANUC OM |
| Spindle taper | BT40 |
| Number of pallets | 2 |

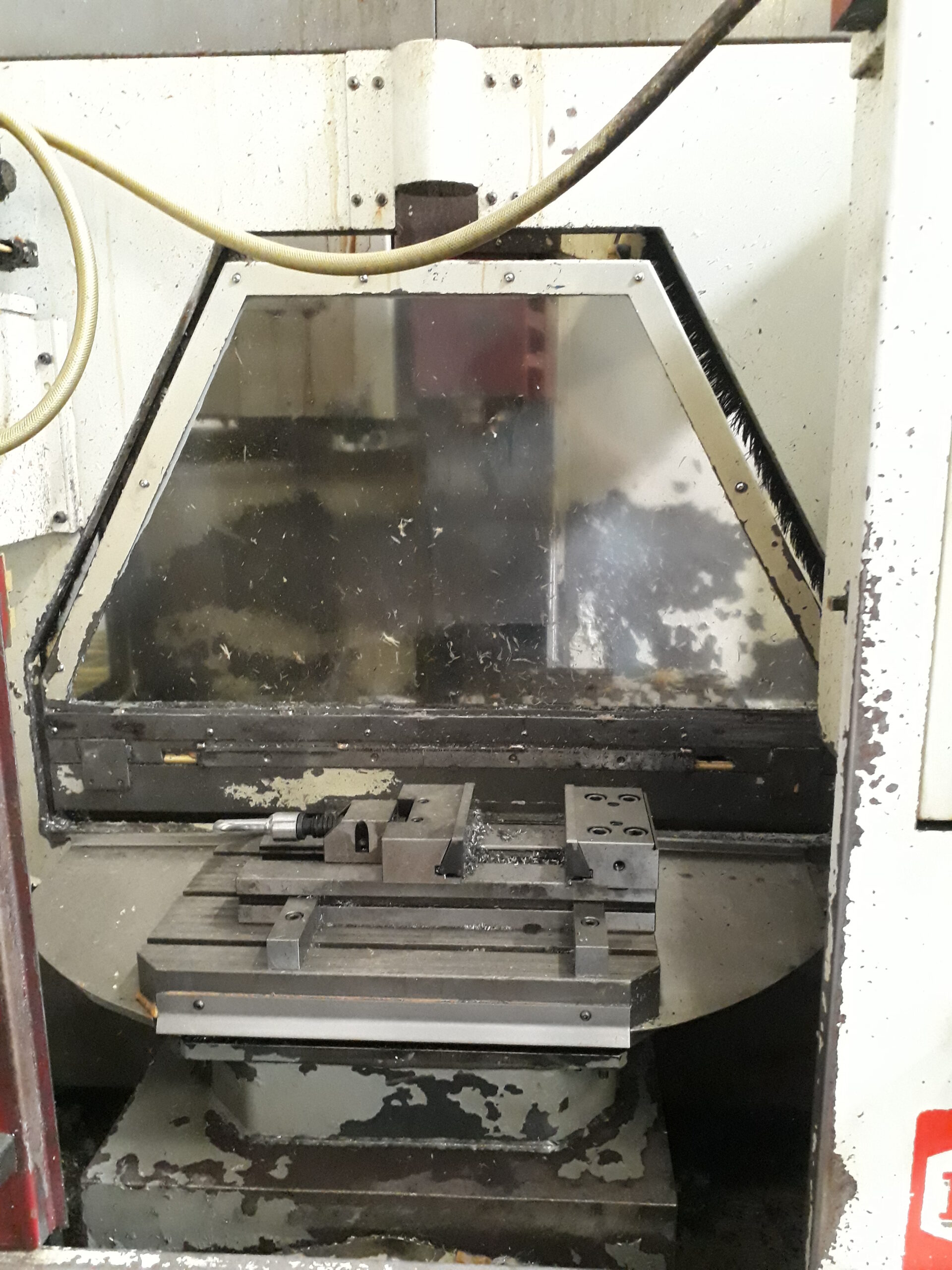

| Table area | 500x300 mm |
| Pallets changing time | 7s |
| Maximum weight on table | 150kg Kg |
| Spindle speed | 9000 RPM |
| Max length of the tools | 250 mm |

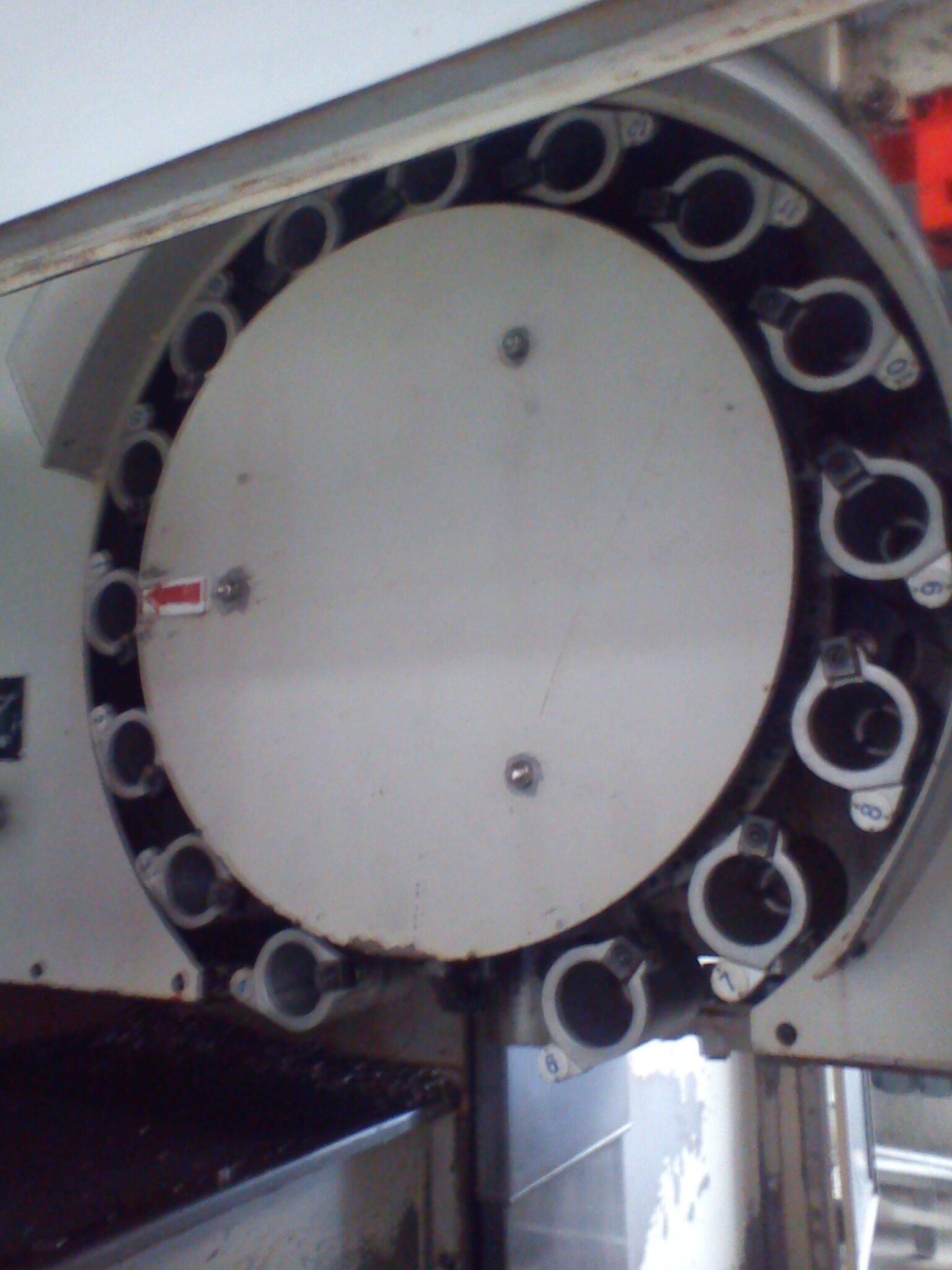

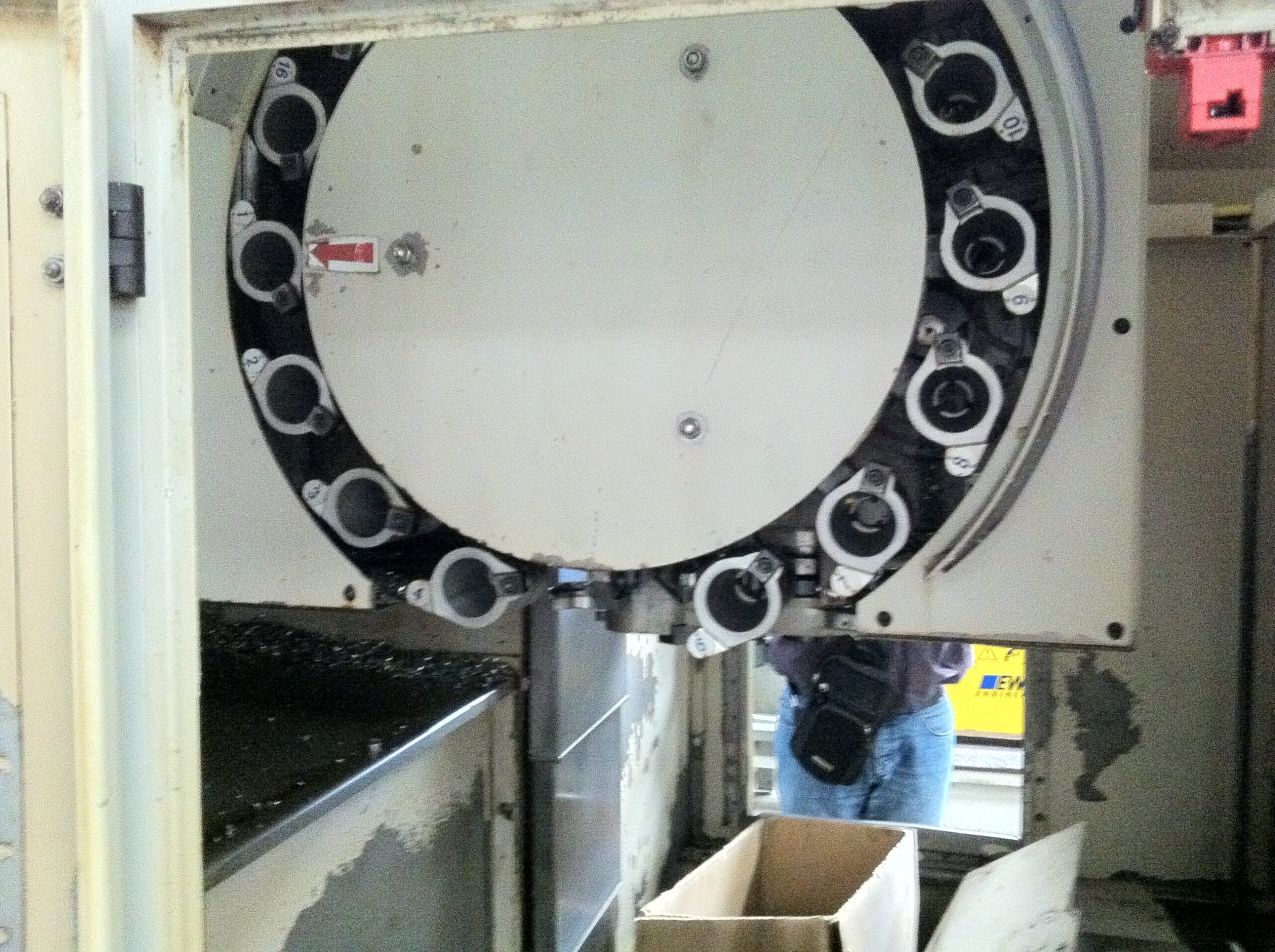

| Tool storage | 16 Tools |
| Max weight of the tools | 3 kgs |
| Max tool diameter | 100mm mm |
| Coarse feed of X axis | 40000 mm/mn |
| coarse feed of Y axis | 40000 mm/mn |
| coarse feed of Z axis | 40000 m/mn |
| Spindle motor | 7,5 KW |
| Weight | 3200 Kg |
| Dimensions | 1900x2600x2600 mm |
