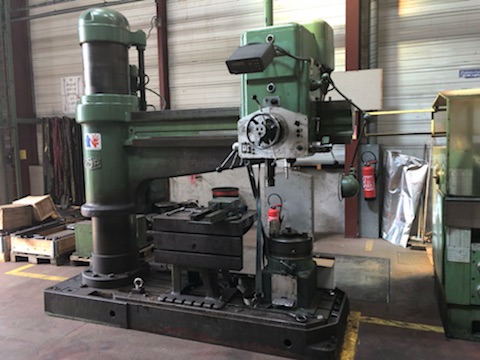

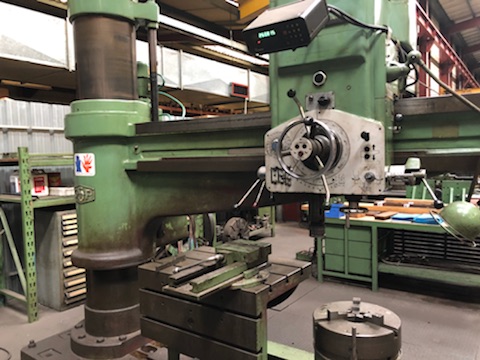

GSP 407 Q 17 - Used machine
SOLD
| Model | 407 Q 17 |
| Spindle taper | CM 5 |
| Maximum drilling radius | 1960mm mm |
| Min. drilling radius | 590mm mm |
| Spindle stroke | 400 mm |
| Minimum height under spindle | 350 mm |
| Max. height under spindle | 1550 mm |
| Arm vertical stroke | 800 mm |
| Number of spindle speeds | 24 |
| Spindle speed | 25 à 1400 RPM |
| Number of automatic feeds | 8 |
| Up and down feed motor | 3 HP |
| spindle head horizontal stroke | 1395 mm |
| Dimensions | 2950x1380x3050 mm |
| Weight | 5500 Kg |
Power feeds : 0,06 to 1,5 mm/tr
